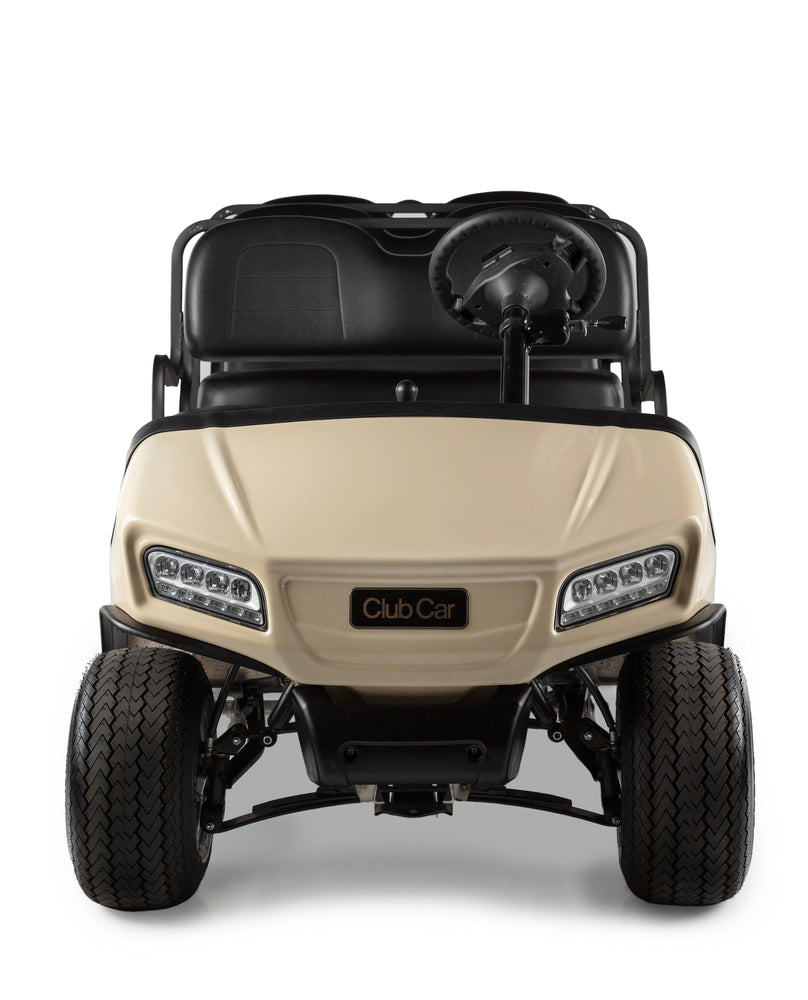

The Villager 8 is our most stylish and sophisticated transport vehicle yet.
The Villager 8 offers premium comfort and durability to move up to eight (8) passengers at a time. This vehicle is equipped with an updated automotive design and a spacious cabin, which provides a comfortable space for operators and ease of ingress/egress for those on board.
A long-time classic on resorts, the Villager 8 moves up to eight passengers in a single trip and can replace expensive vans. Yet it also travels narrow areas not accessible to conventional vehicles.
Villager 8 now includes a powerful 14.0 HP Kohler gas engine for better efficiency and consistent performance, regardless of the application.
The vehicle is also available in quiet, zero-emissions electric models with optional extended-range batteries to keep the Villager 8 powered and moving all day. Smart onboard chargers with reel retractors prevent common user errors and let you charge at any 110-volt outlet. To further boost performance, upgrade your Villager with a 48V AC electric powertrain. AC provides increased performance, power, and acceleration to keep your operations running smoothly.
Safety and cleanability are made easy with Villager 8’s marine-grade vinyl seats, which can be quickly wiped down and maintained over time.
Safety-enhancing features such as industry-exclusive daytime running lamps, LED headlights, turn signals, tail/brake lights, a four-wheel braking system, and a horn ensure that your guests arrive safely.
Villager 8 is built to last on a rustproof aluminum frame that resists water, fertilizers, chemicals, and salt. Fade and impact-resistant ArmorFlex™ bodies help the vehicles retain their youthful appearance.
Power
- Engine/Motor Type: Kohler, 4-cycle
- Displacement: 429 cc
- Cylinders: Single
- Valving: Overhead Cam
- Cooling: Air-cooled
- Horsepower (rated): 14.0 HP (10.3 kW) rated @ 3600 RPM per SAE J1940
- Max Torque: 20.9 ft-lbs. (28.3 n-m) rated @ 2800 RPM
- Lubrication: Splash Lubrication
- Governor: Ground Speed
- Transmission: Continuously Variable Transmission (CVT)
- Gear Selection: Forward/Neutral/Reverse
- Gear Ratio: 11.47:1 Forward; 15.63:1 Reverse
- Ignition: Electronic
- Battery: 12v 500 CCA 105 Min Reserve
- Fuel Delivery System: Electronic Fuel Injection (EFI)
- Fuel Tank Capacity: 5.5 Gallons
- Top Speed: 15-17 mph
Steering & Suspension
- Steering Mechanism: Self-adjusting Rack and Pinion
- Suspension: Independent Leaf Spring w/ Dual Hydraulic Shocks
Brakes
- Brakes: 4-Wheel Mechanical Drum
- Park Brake: Foot Operated, Multi-lock
Body & Tires
- Headlights: Dual LED w/ Daytime Running Lamps and Turn Signals
- Tail Lights: LED Tail/Brake Lights
- Body - Front and Finish: ArmorFlex® w/ Automotive Paint/Clearcoat
- Tires: 18 x 8.5-8, 6-ply, Premium Tread
Dimensions & Weights
- Overall Height: 48"
- Overall Length: 157"
- Max Width (w/o Mirrors): 47.3"
- Ground Clearance (Differential): 4.5"
- Vehicle Weight: 894 lbs.
- Total Vehicle Capacity: 1,500 LBS
- Seating Capacity: 8
- Wheelbase: 131.5"
- Track Width (Front): 34.5"
- Track Width (Rear): 38.6"
Warranty
- 3-Year - Limited Powertrain and Frame
- 2-Year - Limited Remaining Vehicle
Power
- Engine/Motor Type: 48v DC
- Controller: 500 Amp - Solid State
- Horsepower (rated): 3.7 HP (2.7 kW) rated, Peak 20 HP (14.9 kW)
- Max Torque: 71 ft-lbs. (96.2 n-m) rated @ 1450 RPM
- Transmission: Direct Drive, Double Reduction Helical Gear
- Gear Selection: Forward/Neutral/Reverse
- Gear Ratio: 12.32:1
- Battery: Eight (8) - 6v Flooded Lead Acid
- Charger: Delta-Q Quiq (1kW High Frequency)
- Top Speed: 5-17 mph
Steering & Suspension
- Steering Mechanism: Self-adjusting Rack and Pinion
- Suspension: Independent Leaf Spring w/ Dual Hydraulic Shocks
Brakes
- Brakes: 4-Wheel Mechanical Drum
- Park Brake: Foot Operated, Multi-lock
Body & Tires
- Headlights: Dual LED w/ Daytime Running Lamps and Turn Signals
- Tail Lights: LED Tail/Brake Lights
- Body - Front and Finish: ArmorFlex® w/ Automotive Paint/Clearcoat
- Tires: 18 x 8.5-8, 6-ply, Premium Tread
Dimensions & Weights
- Overall Height: 48"
- Overall Length: 157"
- Max Width (w/o Mirrors): 47.3"
- Ground Clearance (Differential): 4.5"
- Vehicle Weight: 1,219 lbs.
- Total Vehicle Capacity: 1,500 LBS
- Seating Capacity: 8
- Wheelbase: 131.5"
- Track Width (Front): 34.5"
- Track Width (Rear): 38.6"
Warranty
- 4-Year - Limited Battery Warranty
- 3-Year - Limited Powertrain and Frame
- 2-Year - Limited Remaining Vehicle
Power
- Engine/Motor Type: 48v AC
- Controller: 400 Amp - Solid State
- Horsepower (rated): 8.0 HP (6.0 kW) rated, Peak 16 HP (11.7 kW)
- Transmission: Direct Drive, Double Reduction Helical Gear
- Gear Selection: Forward/Neutral/Reverse
- Gear Ratio: 12.32:1
- Battery: Eight (8) - 6v Flooded Lead Acid
- Charger: Delta-Q Quiq (1kW High Frequency)
- Top Speed: 5-17 mph
Steering & Suspension
- Steering Mechanism: Self-adjusting Rack and Pinion
- Suspension: Independent Leaf Spring w/ Dual Hydraulic Shocks
Brakes
- Brakes: 4-Wheel Mechanical Drum
- Park Brake: Foot Operated, Multi-lock
Body & Tires
- Headlights: Dual LED w/ Daytime Running Lamps and Turn Signals
- Tail Lights: LED Tail/Brake Lights
- Body - Front and Finish: ArmorFlex® w/ Automotive Paint/Clearcoat
- Tires: 18 x 8.5-8, 6-ply, Premium Tread
Dimensions & Weights
- Overall Height: 48"
- Overall Length: 157"
- Max Width (w/o Mirrors): 47.3"
- Ground Clearance (Differential): 4.5"
- Vehicle Weight: 1,219 lbs.
- Total Vehicle Capacity: 1,500 LBS
- Seating Capacity: 8
- Wheelbase: 131.5"
- Track Width (Front): 34.5"
- Track Width (Rear): 38.6"
Warranty
- 4-Year - Limited Battery Warranty
- 3-Year - Limited Powertrain and Frame
- 2-Year - Limited Remaining Vehicle
