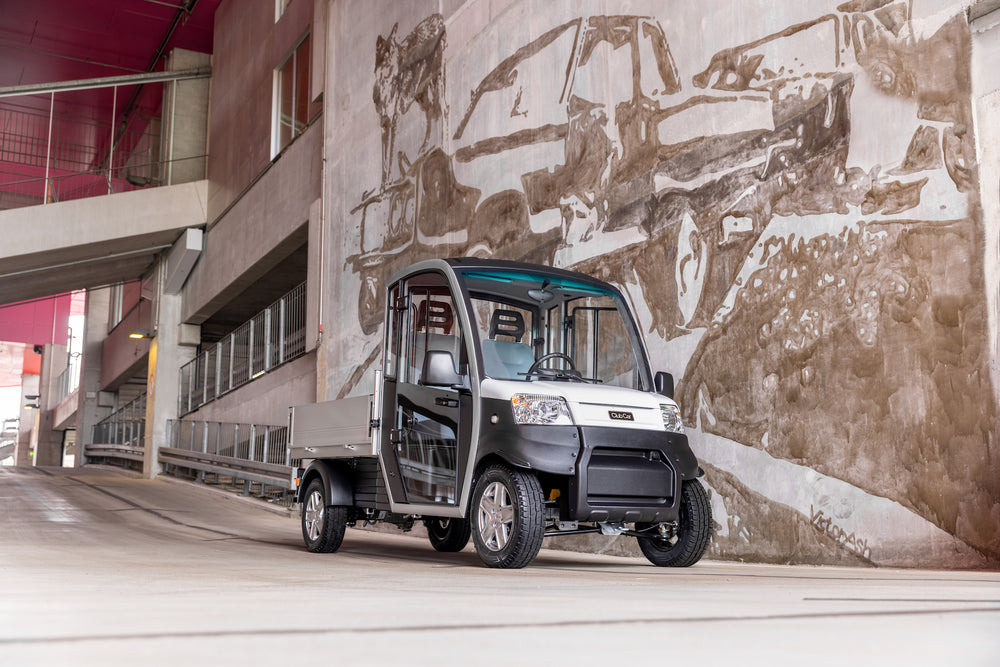

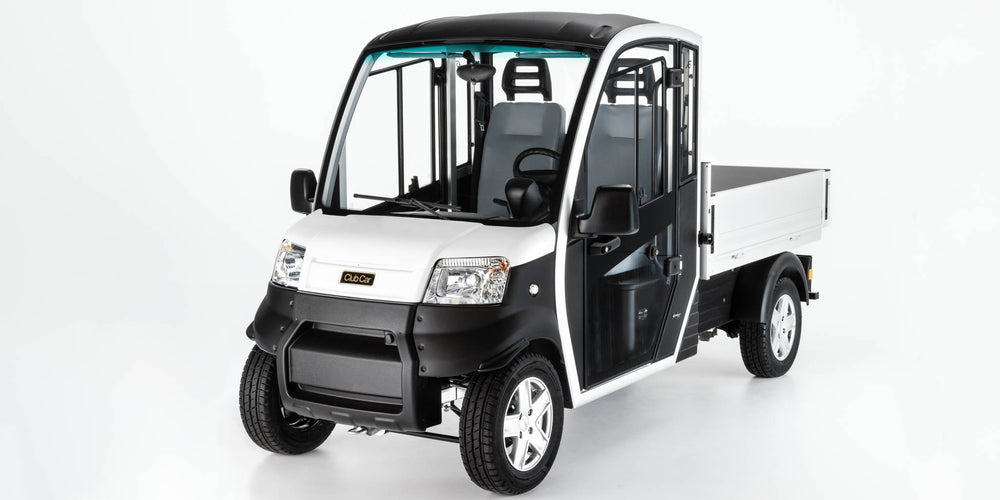

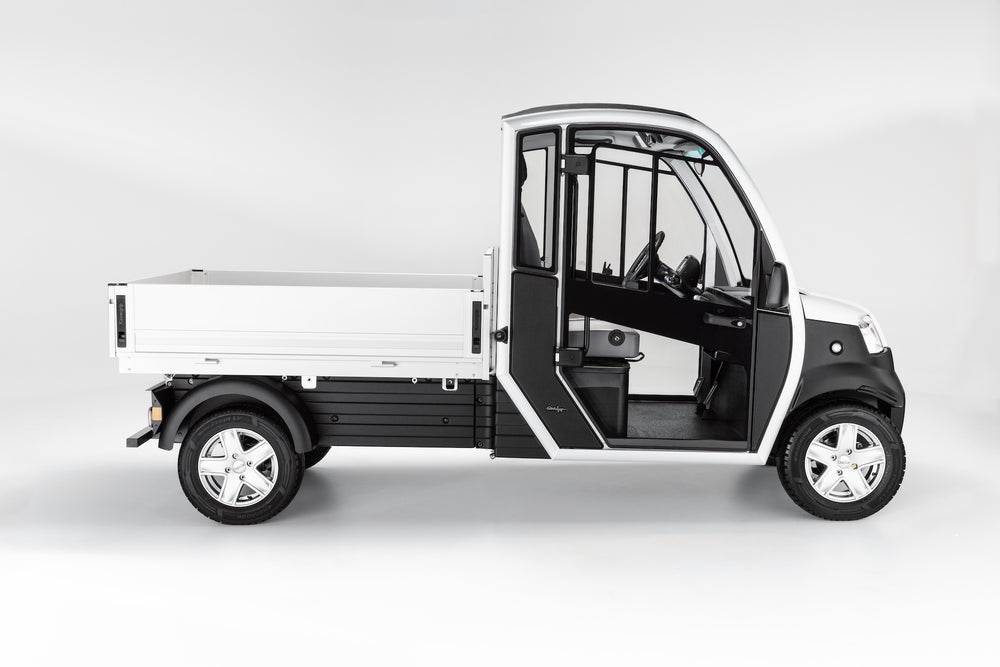

Meet Club Car's new lineup of Urban electric utility vehicles. Efficient, safe and green, Club Car Urban vehicles integrate form and function into eco-friendly, crash-tested vehicles that help you to get the job done. Embrace comfort for long days on the road by driving a compact design with agile handling to navigate tight spaces while carrying a payload of up to 2,204 lbs.
The Club Car Urban is available in 2 versions: XR non-street legal and LSV street legal which includes 3-pt seatbelts, mirrors, tail lights, brake lights, turn signals, and a horn, plus an in-dash storage compartment and backup camera system.
With a variety of power options, a wide range of uses on and off the street, and a fully customized configuration, the Club Car Urban is in a class of its own. Different options allow the user to tailor the Urban to their specific needs. Multiple bed configurations are easy to order and come prepped and ready to go. Storage options are wide-ranging and versatile to accommodate a wide variety of different-sized goods.
The Club Car Urban is built to handle any task. Whether it's facilities maintenance, mobile food delivery, or supply drop off, with the durability of a pick-up truck and the efficiency of an electric vehicle.
What is a low speed vehicle (LSV)?
All LSV vehicles must meet all U.S. federal safety standards (FMVSS 500) which require a registered VIN number, automotive safety windshield glass, safety belts, turn signals, headlamps, brake lights, horn, mirrors, reflex reflectors, a parking brake and a rear view camera. They also must meet state and local laws which can include windshield wipers and warning beacons.
In addition to federal, local and state laws the Society of Automotive Engineers created a voluntary industry standard for LSVs with SAEJ2358 LSV. This voluntary safety standard includes additional detailed requirements.
Club Car LSVs meet not only FMVSS500 LSV standards but also fully comply with the more stringent automotive SAEJ2358 standards with the inclusion of Occupant Protective Structures on all cars.
The Urban LSVs come standard with street legal safety and cab features such as 3-pt seatbelts, head and tail lights, mirrors, backup camera system, AVAS, windshield wipers, heated windscreen, rear bulkhead glass, automatic park brake, speed switch, premium instrument cluster, and lockable storage.
Urban Cargo Options

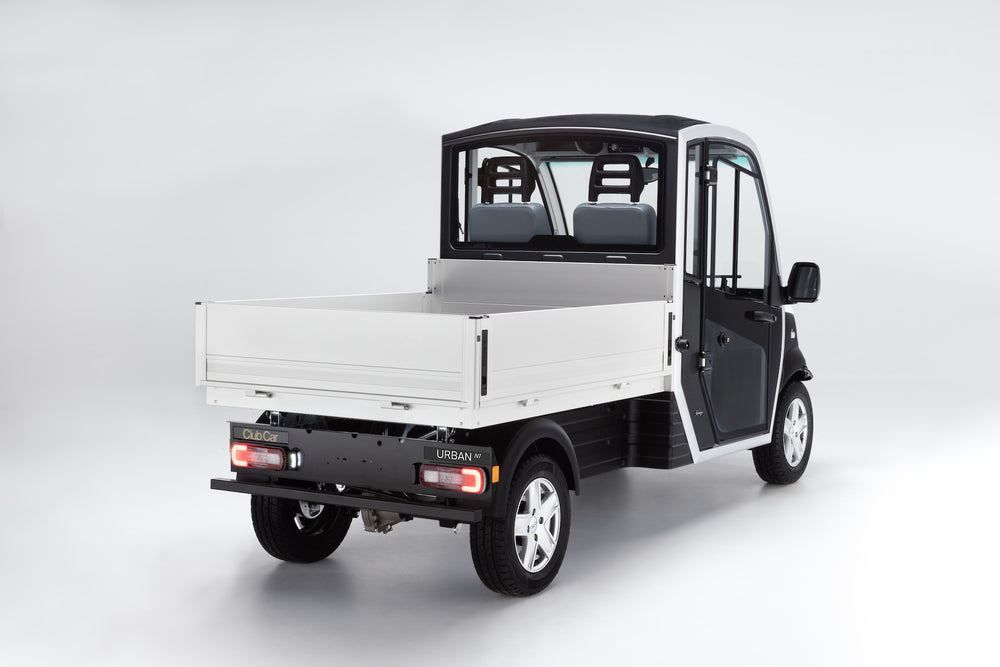

Pickup Bed
2 Size Options
Fixed or Tilt Pickup = 50.04" (w) x 65.87" (l) x 17.72" (h)
Fixed = 50.04" (w) x 85.63" (l) x 17.72" (h)
Van Box
2 Size Options
Fixed = 51.18" (w) x 64.96" (l) x 46.85" (h)
Fixed = 51.18" (w) x 85.24" (l) x 46.85" (h)
Pickup With Mesh Cage
2 Size Options
Fixed = 50.04" (w) x 65.87" (l) x 73.9" (h)
Fixed = 50.04" (w) x 85.63" (l) x 73.9" (h)
Power & Batteries
- Engine/Motor Type: 48v High Efficient 3-Phase AC Engine
- Controller: Curtis 350 A
- Continuous Power (60 Minutes): 8 kW / 10.7 HP
- Peak Power: 14.3 kW / 19.2 HP
- Operating Grade: Less Than 20%
- Top Speed: 25 mph
- Standard Battery: Flooded Lead Acid T145 Heavy Duty (range up to 37 miles)
- Lithium Options Listed Below:
- 9.2 kWh / 180 ah (range up to 47 miles)
- 10.2 kWh / 200 ah (w/ Heating Blanket)
- 12.2 kWh / 240 ah (range up to 63 miles)
Brakes
- Hydraulic Front Brakes: Disc
- Hydraulic Rear Brakes: Drum
- Parking Brake - Standard Electronic
Body & Tires
- Chassis: Galvonized Steel Frame
- Lights: Complete Exterior Light Package
- Tires: 165/70 R13
Cargo Bed Options
Pickup Bed - 2 Size Options
- Fixed or Tilt Pickup = 50.04" (w) x 65.87" (l) x 17.72" (h)
- Fixed = 50.04" (w) x 85.63" (l) x 17.72" (h)
Van Box - 2 Size Options
- Fixed = 51.18" (w) x 64.96" (l) x 46.85" (h)
- Fixed = 51.18" (w) x 85.24" (l) x 46.85" (h)
Pickup Bed w/ Mesh Cage - 2 Size Options
- Fixed = 50.04" (w) x 65.87" (l) x 73.9" (h)
- Fixed = 50.04" (w) x 85.63" (l) x 73.9" (h)
Dimensions & Weights
- Overall Height: 74"
- Overall Length: 143"
- Width (w/ Mirrors): 69"
- Width (w/o Mirrors): 54"
- Ground Clearance (Differential): 9"
- Bed Length x Width: 64" x 53.75"
- Bed Load Capacity: 1,100 lbs.
- Turning Radius: 168"
- Wheelbase: 108"
Warranty
- 3-Year - Flooded Lead Acid Batteries
- 5-Year - 9 kWh or 12 kWh Lithium Batteries
- 4-Year - 10 kWh Lithium Batteries
- 3-Year - Suspension & Equipment
- 5-Year - Vehicle Frame
Cab
- Deluxe Cab Pack
- Rear Bulkhead Glass
- Heated Windscreen
- Washer & Wiper Kit
Interior
- Bench Seat
- Premium Instrument Cluster

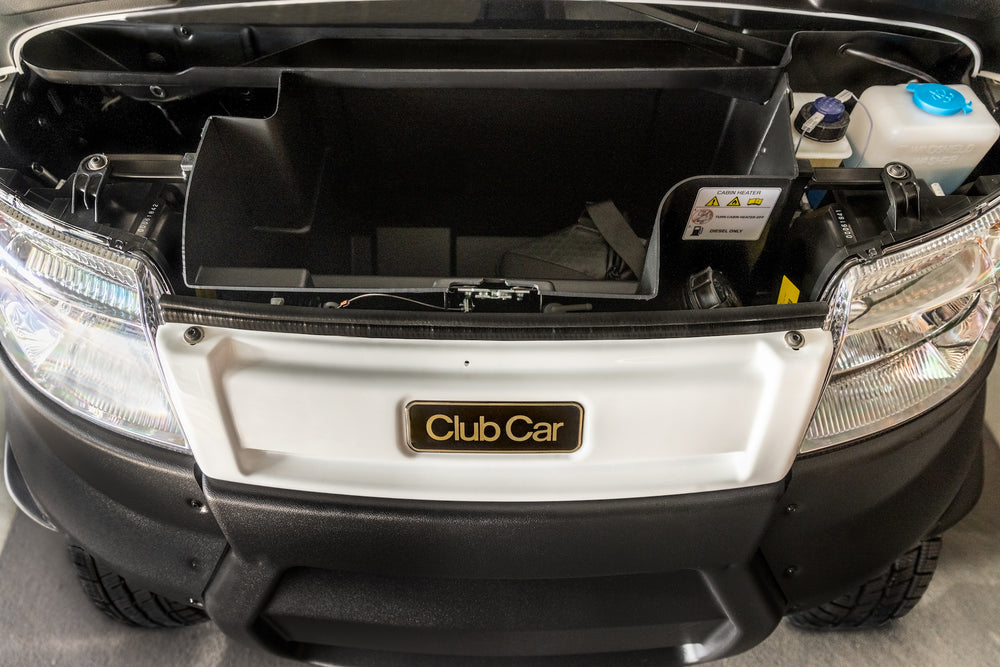

- Secure Storage Locker

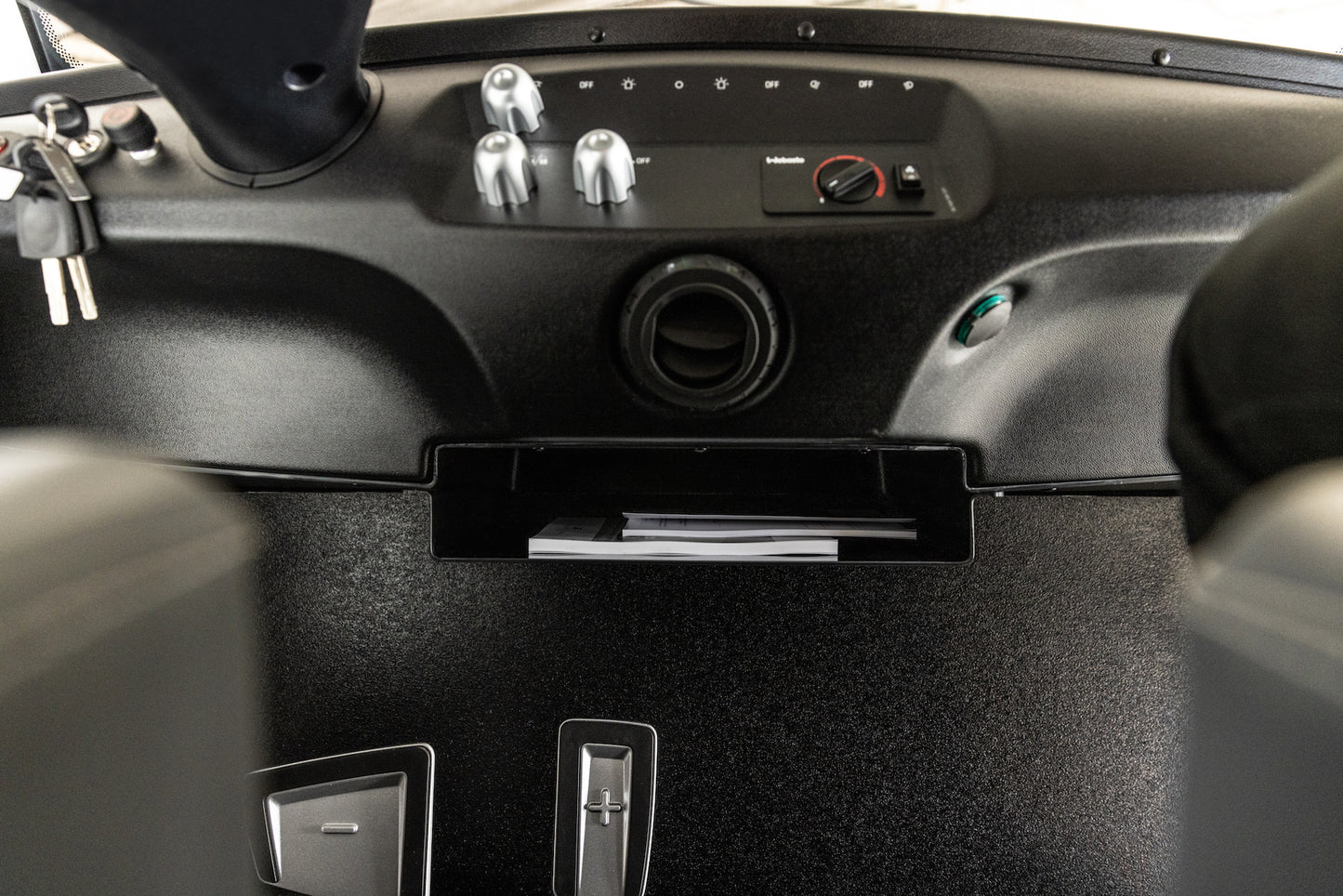

- Dash Storage Compartment
Exterior
- White Body Color
- All-season Tires
- Rear Bumper
Safety

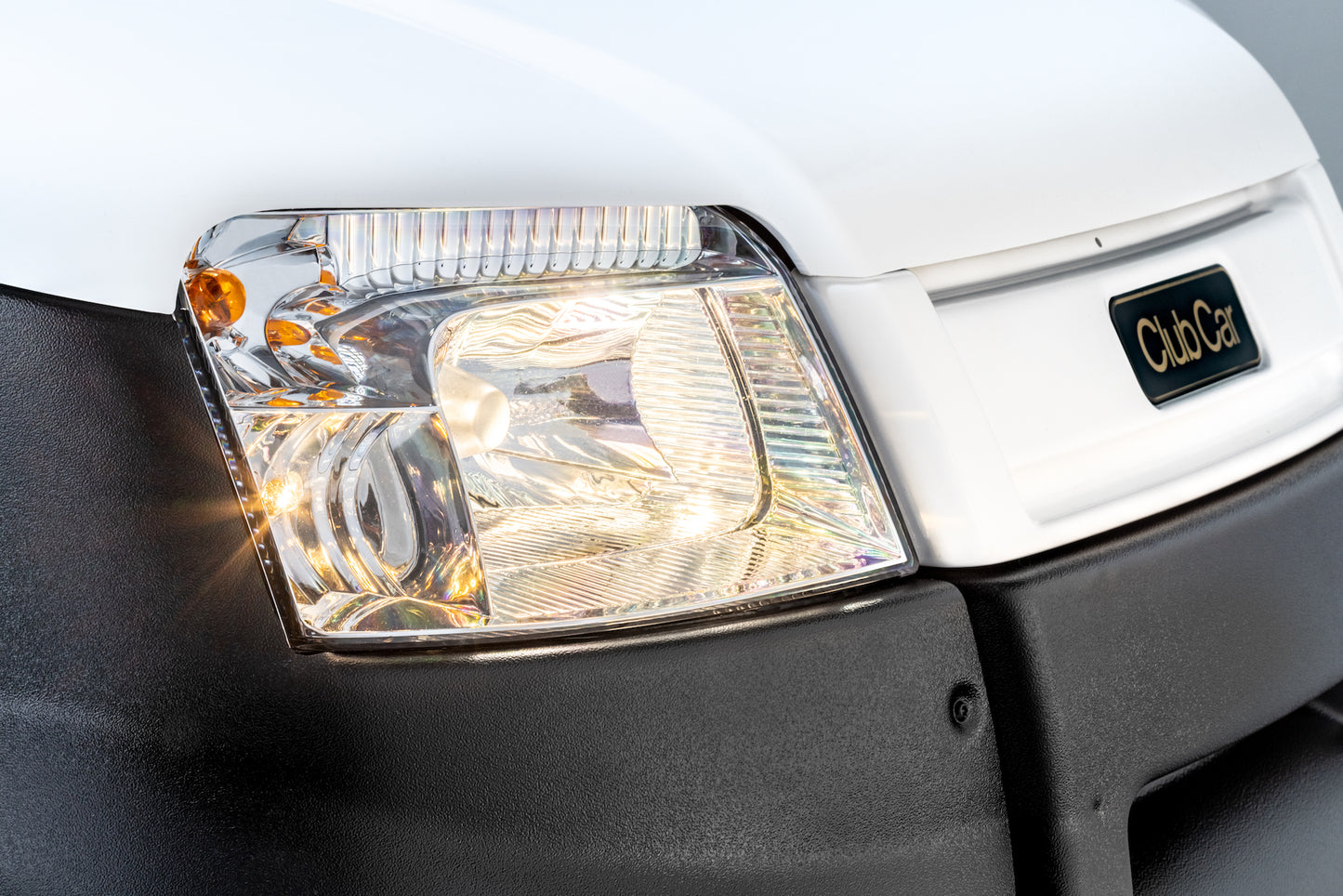

- Head Lights

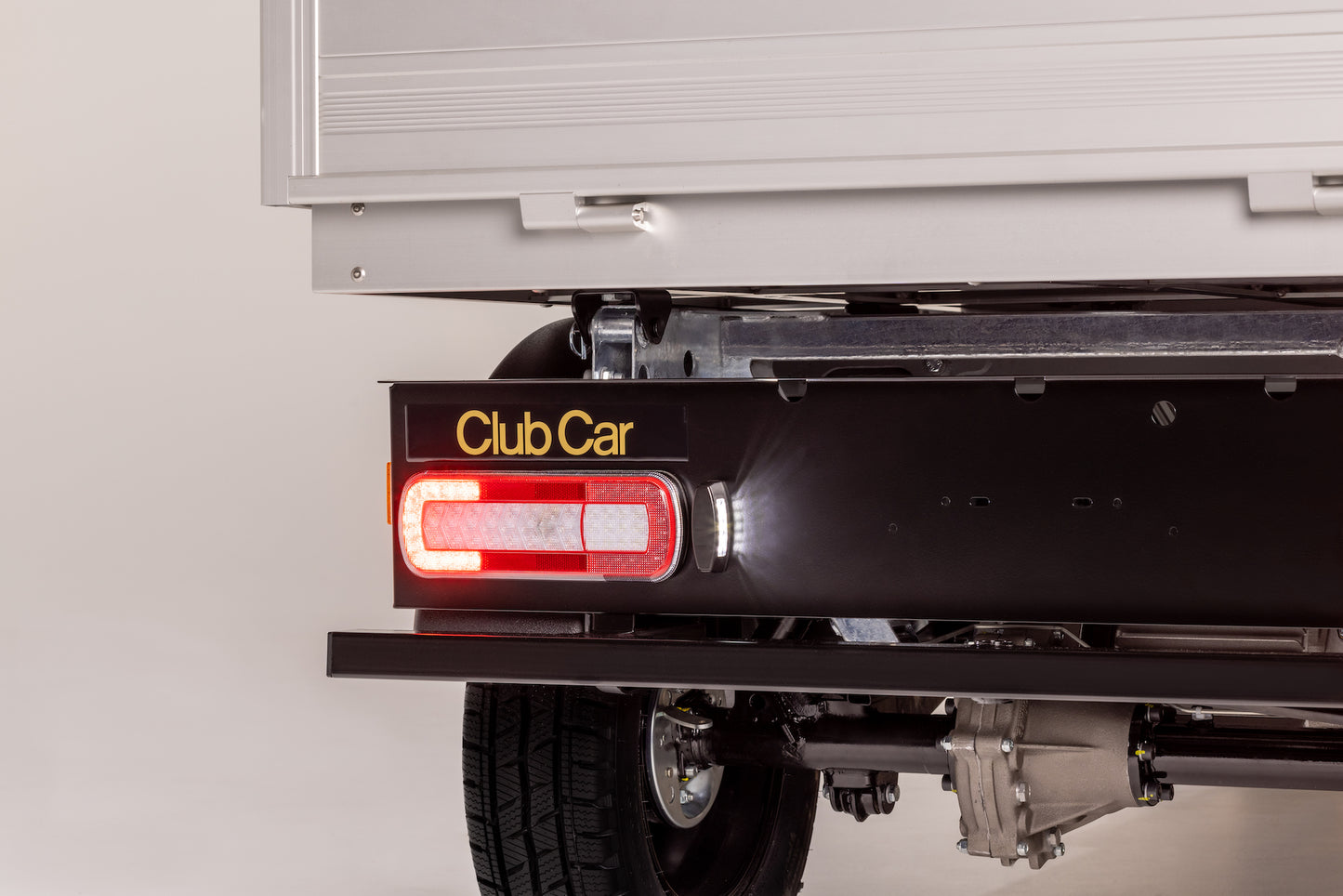

- Tail & Brake Lights
- Turn Signals
- External Side Mirrors
- Horn
- Safety Cab
- Automatic Parking Brake
- 3-Point Seat Belts
- Reverse Buzzer
- Speed Switch
- Reverse/Backup Camera
- AVAS System (Generates sound for nearly silent electric vehicles to improve the safety for pedestrians, cyclists, children, etc.)
Interior
- Adjustable Twin Seats
- Electric Cab Heater
- Diesel Cab Heater
- Bluetooth Stereo
- Refrigerator
- Power Steering
Exterior
- Wide Body Kit w/ Turf Tires
- Wide Body Kit w/ Rough Terrain Tires
- Auxiliary Lighting Socket And Tow Ball
- Tow Ball Only
- Brush Guard
Safety
- Flashing LED Beacons
- Work Light (Front)
- Work Light (Rear)
- First Aid Kit w/ Bracket
- Fire Extinguisher w/ Bracket
