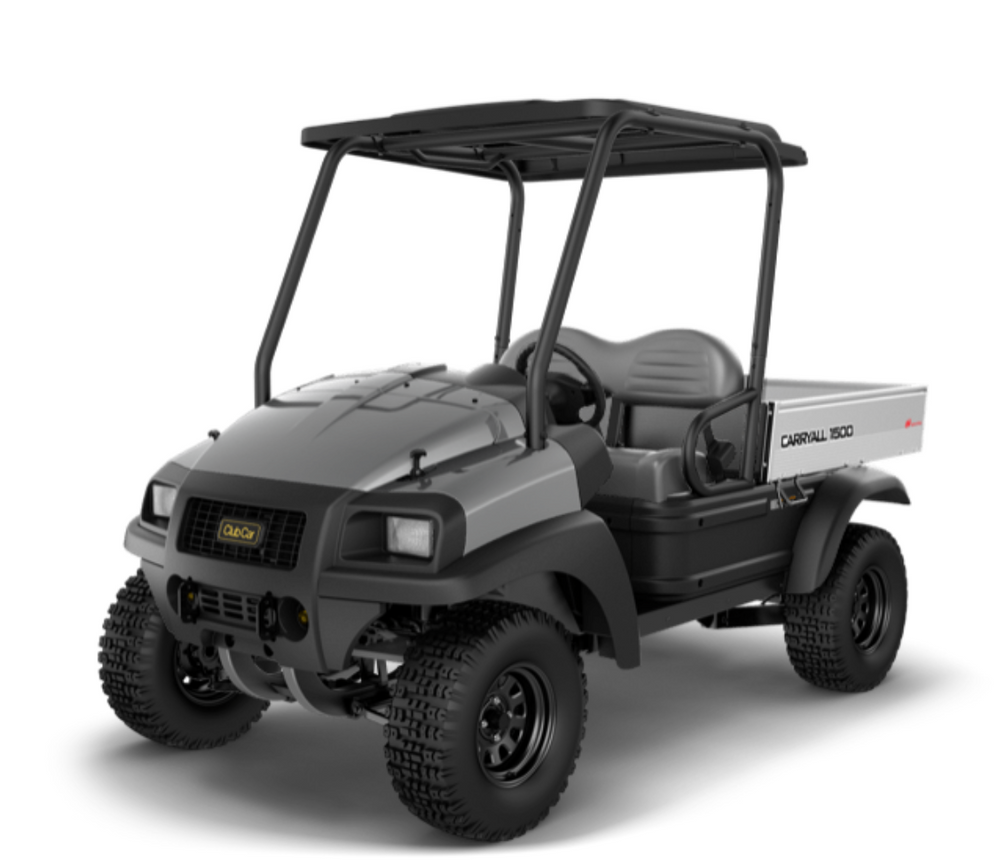

This 2023 Carryall 1500 is the ideal solution for your recreational and utility needs. Enjoy the convenience of the powerful gas engine, hinged windshield for an unobstructed view, electric bed lift for easy load/unload, and tail/brake lights for added safety. Plus, a horn and differential guard provide peace of mind. Get ready for all your adventures with the Carryall 1500.
Power
- Engine/Motor Type: Kawasaki 4-cycle, Industrial Grade
- Displacement: 675 cc
- Cylinders: Twin
- Valving: Overhead Valve
- Coooling: Air-Cooled
- Horsepower (rated): 20.10 HP (15.0 kW) rated @ 3400 RPM per SAE J1349
- Lubrication/Oil Filter: Pressure Lubrication
- Governor: Internal to Engine
- Drivetrain: Intellitrack Automatic 4x4
- Transmission: Continuously Variable Transmission (CVT)
- Gear Selection: Forward/Neutral/Reverse
- Gear Ratio: 5.39:1 Forward; 7.79:1 Reverse
- Ignition: Transistorized Magneto
- Fuel Delivery System: Carburetor
- Battery: 12v 500 CCA; 105 Min Reserve Capacity
- Fuel Tank Capacity: 6.5 Gallons
- Top Speed: 25 mph
Steering & Suspension
- Steering Mechanism: Self-Adjusting Rack and Pinion w/ Tilt Steering
- Suspension - Front: Independent Double A-arm w/ Coil-over Shocks
- Suspension - Rear: Semi-independent 4-link Suspension w/ Coil-over Shocks
- Turning Radius: 11.5'
Brakes
- Front Brakes: Twin-piston Hydraulic Disc
- Rear Brakes: Single-piston Hydraulic Disc
- Park Brake: Foot Operated, Multi-lock, Mechanical Disc
Body & Tires
- Body: GE Geloy High Impact, Scratch-resistant, Injection-molded Color w/ Automotive Finish
- Tires: 25 x 10.5-12 4-ply, All-terrain Tread
Dimensions & Weights
- Overall Height: 82.3"
- Overall Length: 125"
- Max Width (w/o Mirrors): 58.5"
- Ground Clearance (differential): 8.2"
- Vehicle Weight: 1,430 lbs.
- Bed Length x Width x Height (Cargo Box): 48.0" x 49.8" x 10.9"
- Cargo Box Payload (Standard Suspension): 800 lbs.
- Cargo Box Payload (HD Suspension): 1,050 lbs.
- Total Payload (Standard Suspension): 1,200 lbs.
- Total Payload (HD Suspension): 1,450 lbs.
- Towing Capacity: 2,000 lbs.
- Wheelbase: 81.5"
- Track Width (Front): 48.8"
- Track Width (Rear): 48.8"
Warrranty
- Engine/Powertrain: 2-Year or 2,000 Hour - Limited Warranty
- Full Vehicle: 1-Year or 1,000 Hour - Limited Warranty
