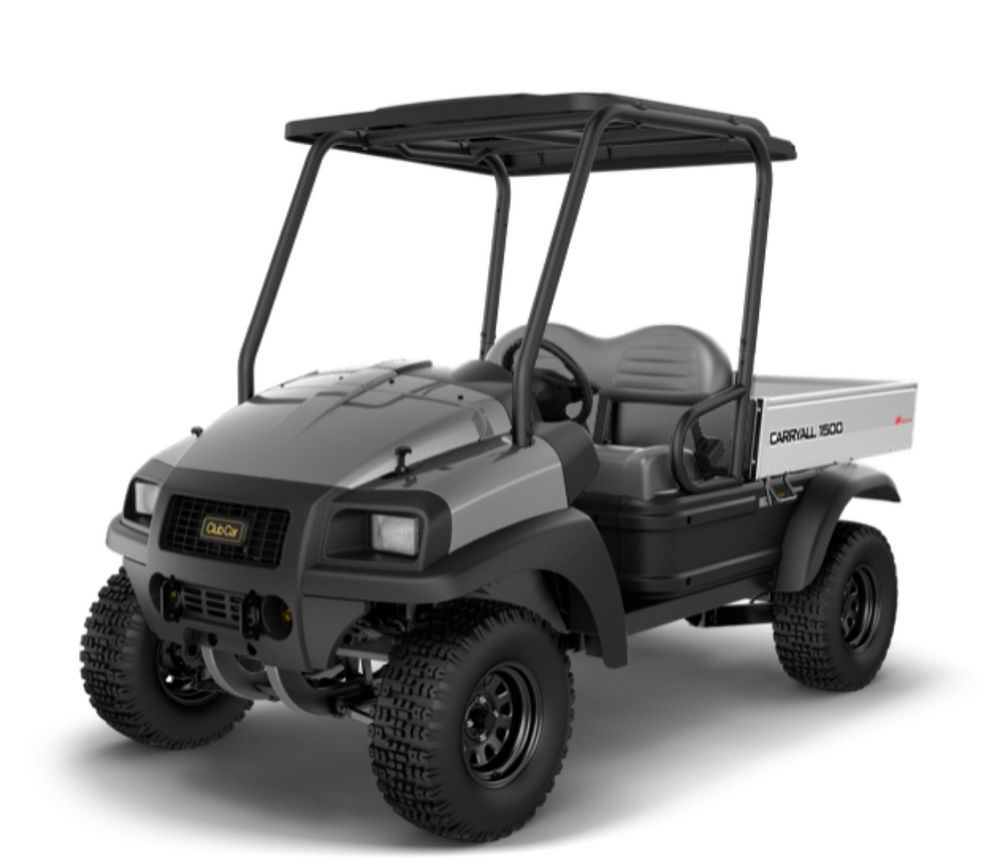

This 2023 Carryall 1500 Diesel is perfect for heavy-duty tasks. It features a black canopy, split fold-down windshield, differential guard, heavy-duty brush guard, electric bed lift, horn, and tail lights/brake lights for added safety. With its reliable design and components, you can work with confidence knowing the Carryall 1500 has you covered.
Power
- Engine/Motor Type: Kubota D722, Industrial Grade
- Displacement: 719 cc
- Cylinders: 3
- Valving: Overhead Valve
- Horsepower (rated): 20.10 HP (15.0 kW) rated @ 3600 RPM per SAE J1995
- Lubrication/Oil Filter: Pressure Lubrication
- Governor: Internal to Engine
- Drivetrain: Intellitrack Automatic 4x4
- Transmission: Continuously Variable Transmission (CVT)
- Gear Selection: Forward/Neutral/Reverse
- Gear Ratio: 5.39:1 Forward; 7.79:1 Reverse
- Ignition: Compression
- Fuel Delivery System: Mechanical Injection
- Battery: 12v 500 CCA; 105 Min Reserve Capacity
- Fuel Tank Capacity: 6.5 Gallons
- Top Speed: 25 mph
Steering & Suspension
- Steering Mechanism: Self-Adjusting Rack and Pinion
- Suspension - Front: Independent Double A-arm w/ Coil-over Shocks
- Suspension - Rear: Semi-independent 4-link Suspension w/ Coil-over Shocks
- Turning Radius: 11.5'
Brakes
- Front Brakes: Twin-piston Hydraulic Disc
- Rear Brakes: Single-piston Hydraulic Disc
- Park Brake: Foot Operated, Multi-lock, Mechanical Disc
Body & Tires
- Body: GE Geloy High Impact, Scratch-resistant, Injection-molded Color w/ Automotive Finish
- Tires: 25 x 10.5-12 4-ply, All-terrain Tread
Dimensions & Weights
- Overall Height: 82.3"
- Overall Length: 125"
- Max Width (w/o Mirrors): 58.5"
- Ground Clearance (differential): 8.2"
- Vehicle Weight: 1,550 lbs.
- Bed Length x Width x Height (Cargo Box): 48.0" x 49.8" x 10.9"
- Cargo Box Payload (Standard Suspension): 800 lbs.
- Cargo Box Payload (HD Suspension): 1,050 lbs.
- Total Payload (Standard Suspension): 1,200 lbs.
- Total Payload (HD Suspension): 1,450 lbs.
- Towing Capacity: 2,000 lbs.
- Wheelbase: 81.5"
- Track Width (Front): 48.8"
- Track Width (Rear): 48.8"
Warranty
- Engine/Powertrain: 2-Year or 2,000 Hour - Limited Warranty
- Full Vehicle: 1-Year or 1,000 Hour - Limited Warranty
